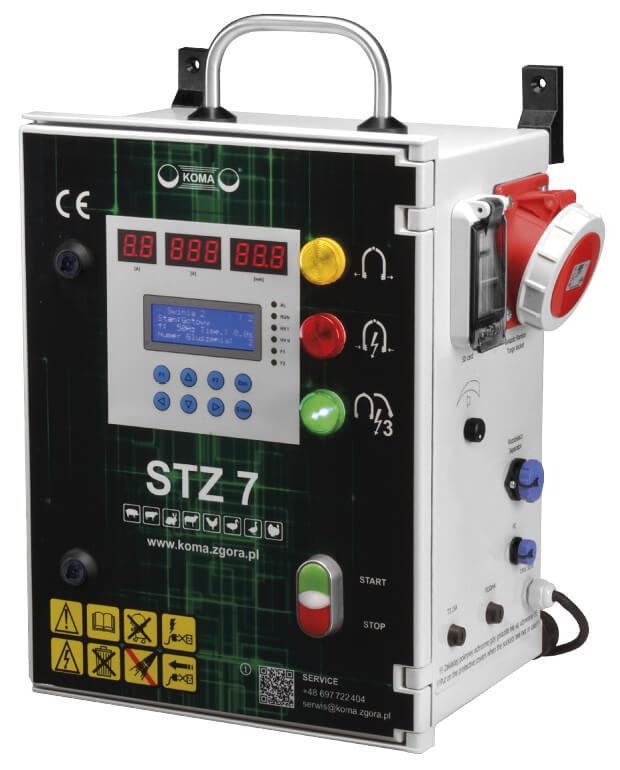

Animal Stunning Device STZ-7

Model: STZ-7

Part No: M0077

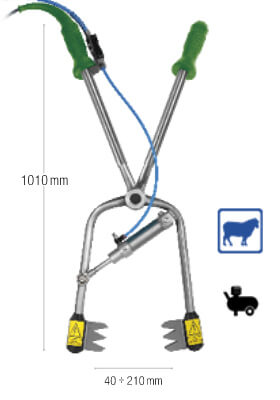

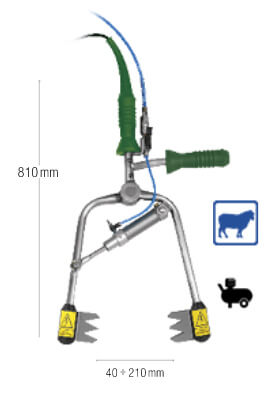

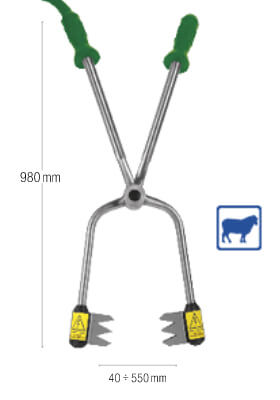

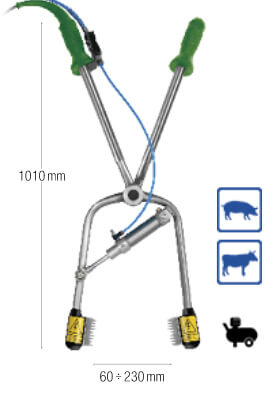

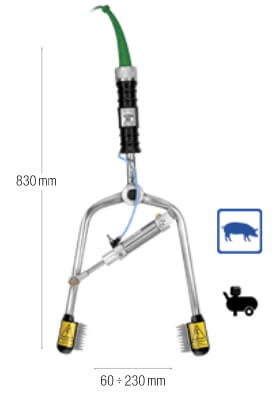

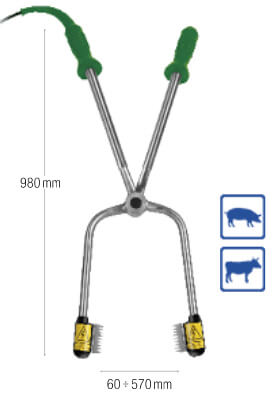

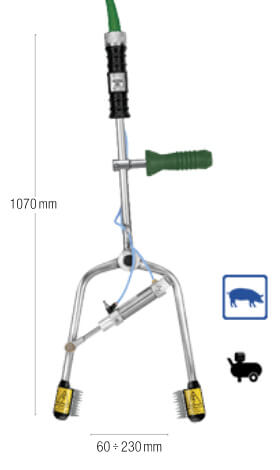

The Animal Stunning Device STZ-7 ensures humane treatment of animals during slaughter. It utilizes electrical stunning with electrodes applied to the head, complying with Council Regulation EC No. 1099/2009 and European Union regulations on animal welfare.

Weight: 14.4 kg

Cable length: 5 m

IP 55 protection rating means:

first 5 - Protection against dust (dust tight);
second 5 - Protection against water (you can use it confidently in environments where it might get splashed or sprayed);
It's not suitable for submersion in water.

STZ – 7 Technical Data

Input	U = 230 V (rated voltage) f = 50 Hz (frequency) P < 700 W (maximum power) I < 3 A (maximum current)
Output	U = 270 V I = 0,02÷2,5 A (stunning current range) f = 50÷800 Hz (frequency range) t = 1÷99,9 s (stunning duration)
Completion of the stunning process	in automatic mode in manual mode – after sound signal
Duty Cycle	S2 240
IP Rating	IP 55
Safety	Protection class – I Animal detection system Isolating transformer Measuring voltage ~ 15 V
Number of stunning programs	20
Change of stunning parameters	Directly on the device By the manufacturer – mail/SD card
Weight	14.4 kg
Dimensions	480 x 365 x 250 mm
Length of power cord	5 m
Research report	B/2021/107 z dnia 27/04/2021
